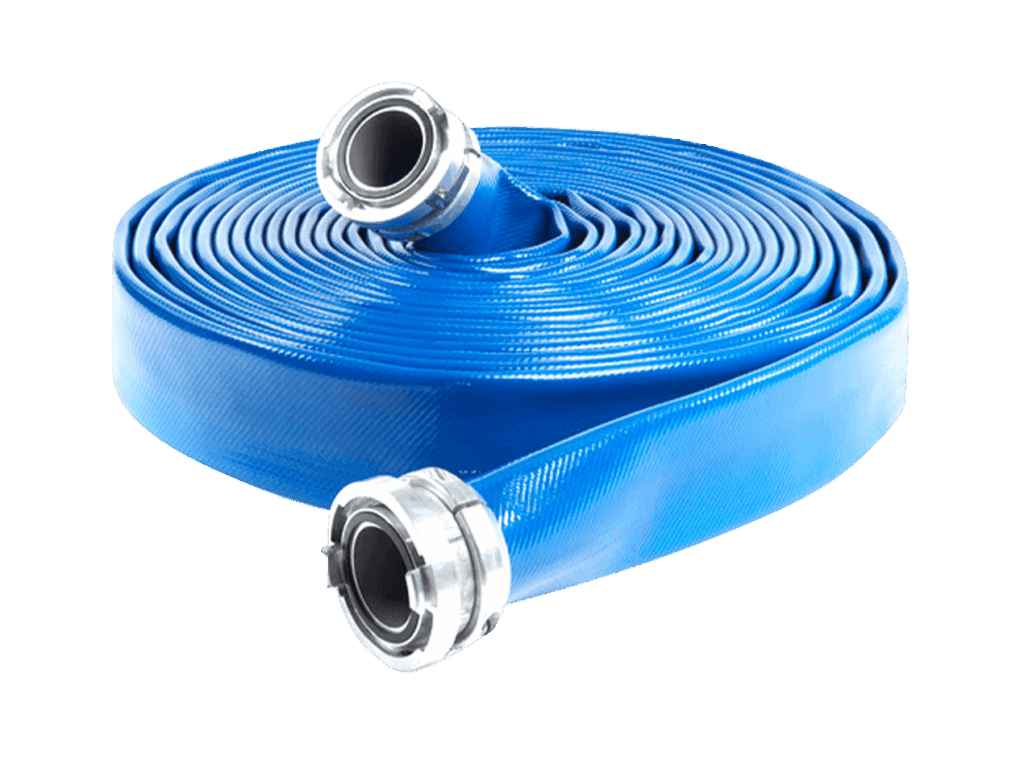

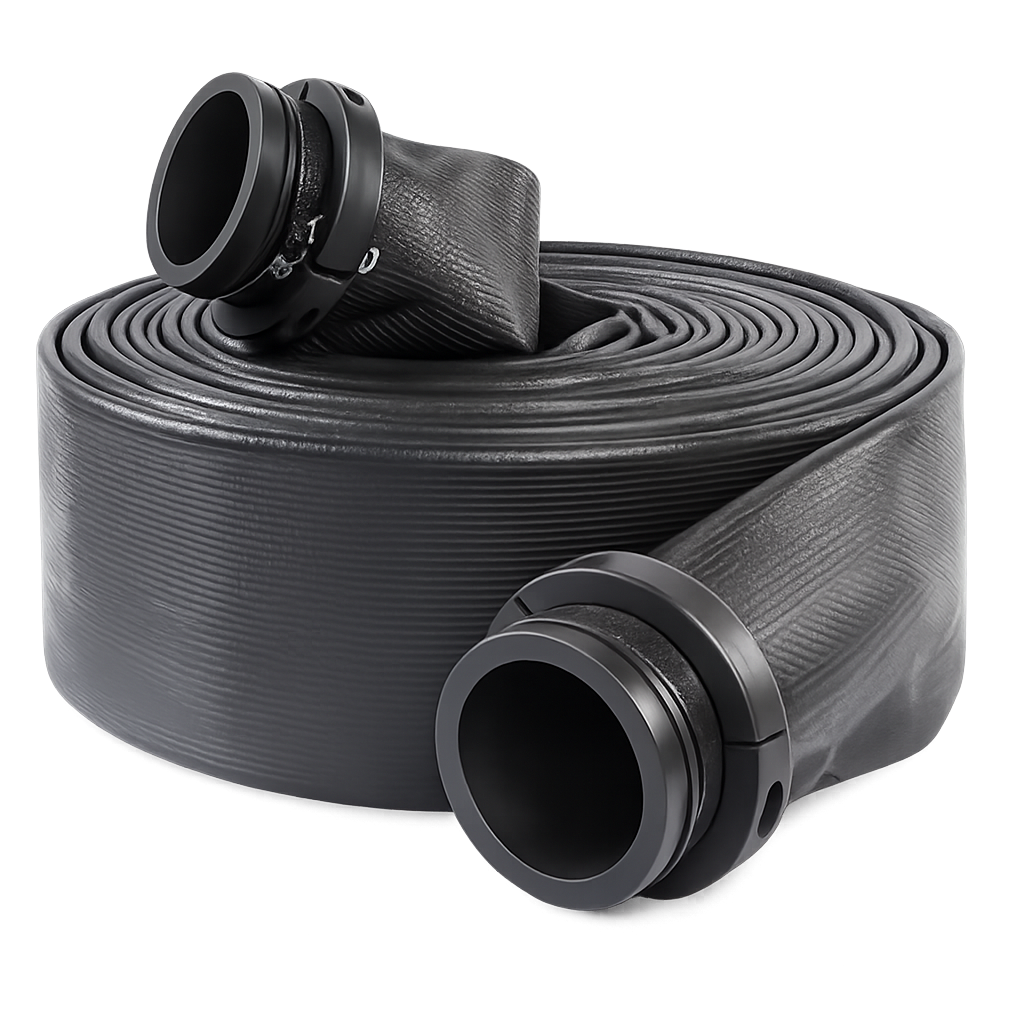

Oroflex Layflat Drag Hose

The Oroflex Drag Hose is built for durability and reliability. Abrasion, chemicals, and hydrocarbons resistant while offering high torsional strength for smooth handling. Ideal for efficient slurry transfer, it delivers the flexibility and toughness needed for modern farming.

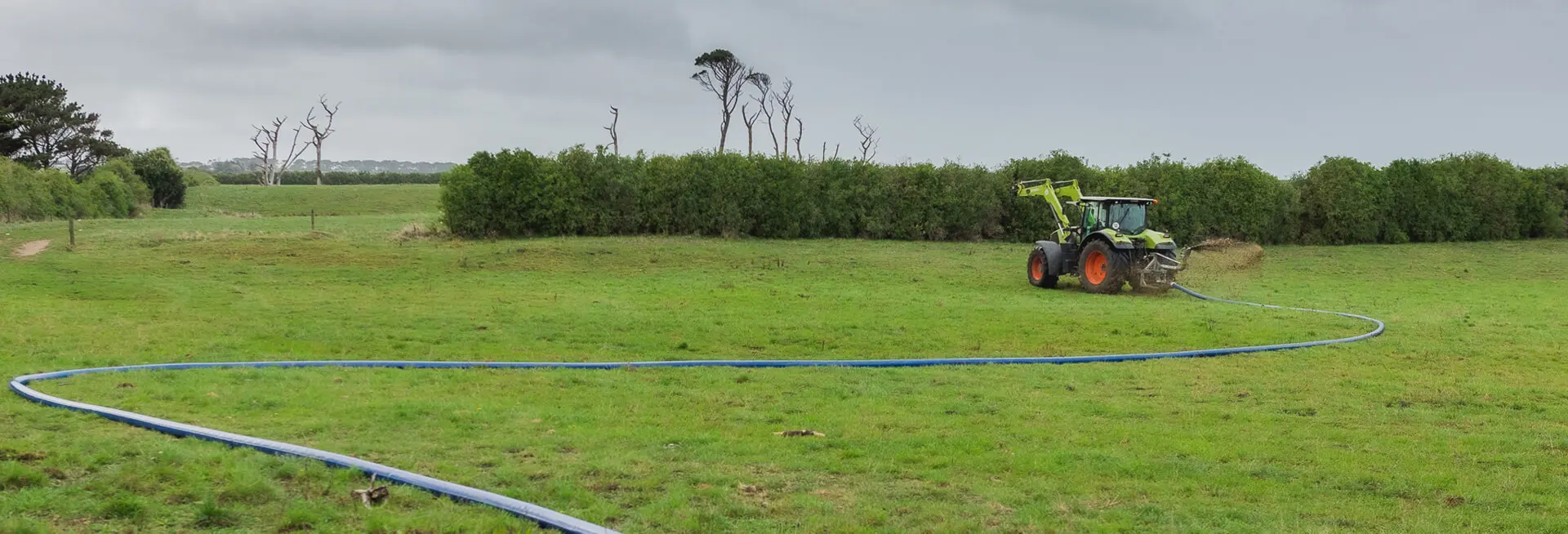

Nevada Drag hose System

Oroflex Layflat Drag Hose

The Oroflex Drag Hose is built for durability and reliability. Abrasion, chemicals, and hydrocarbons resistant while offering high torsional strength for smooth handling. Ideal for efficient slurry transfer, it delivers the flexibility and toughness needed for modern farming.

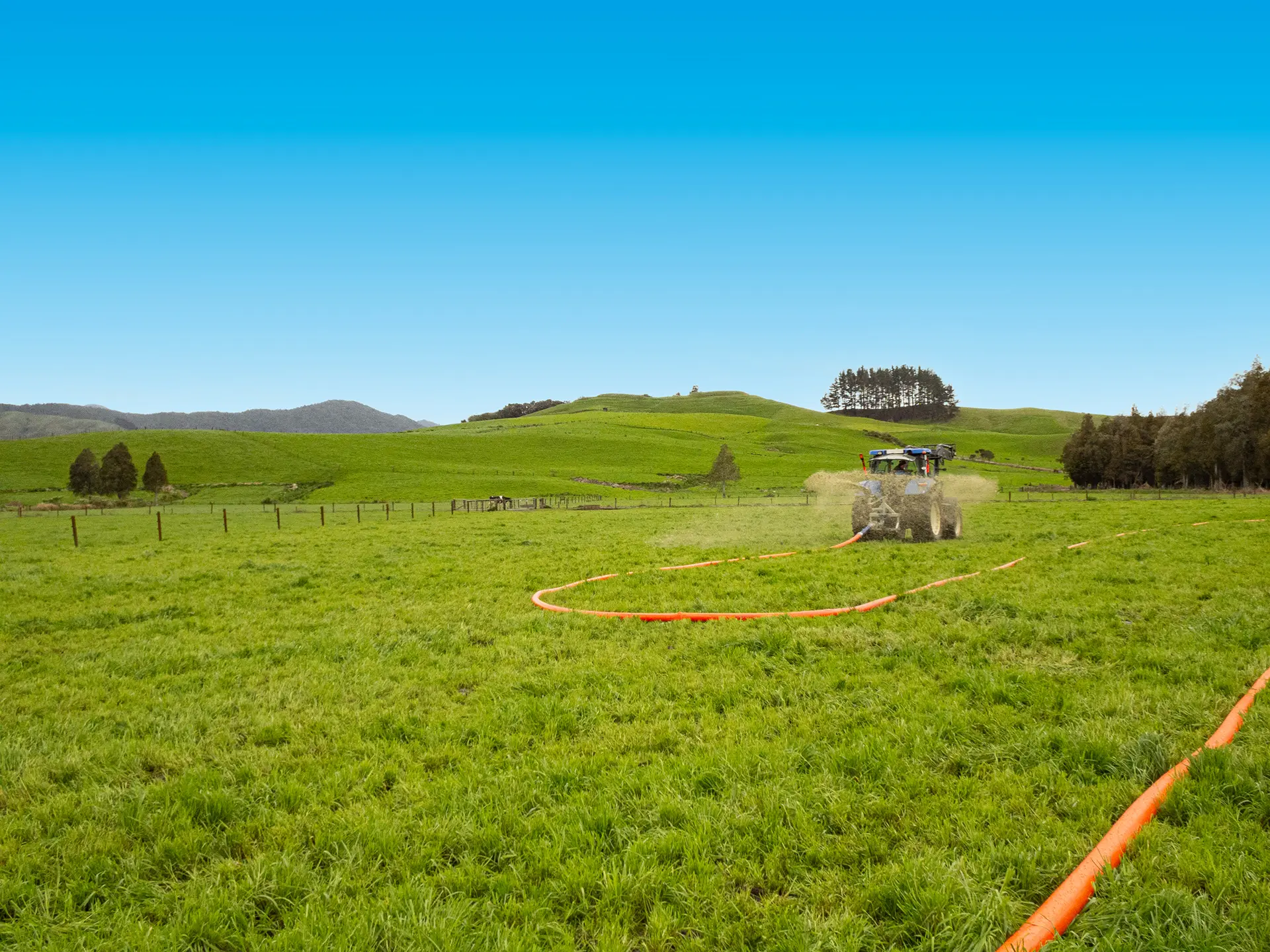

Nevada Drag Hose System

Durable, Flexible, and Built to Perform

Engineered in Germany for tough agricultural applications, the Oroflex Layflat Drag Hose is designed for reliability and longevity. Commonly used in dairy effluent drag hose systems, it offers exceptional resistance to abrasion, chemicals, and hydrocarbons. With high torsional strength, this layflat hose ensures smooth handling and durability in demanding conditions.

Ideal for efficient slurry transfer, Oroflex provides the strength and flexibility needed for modern dairy farming operations.

Features

Top quality PU and rubber lay flat hoses are puncture resistant and stand up to rugged farm use.

  • 102, 127 and 152mm inside diameter
  • 2.30 – 4.00mm wall thickness
  • 5-year manufacturer’s warranty
  • Standard hose length is 200m

Technical Specs

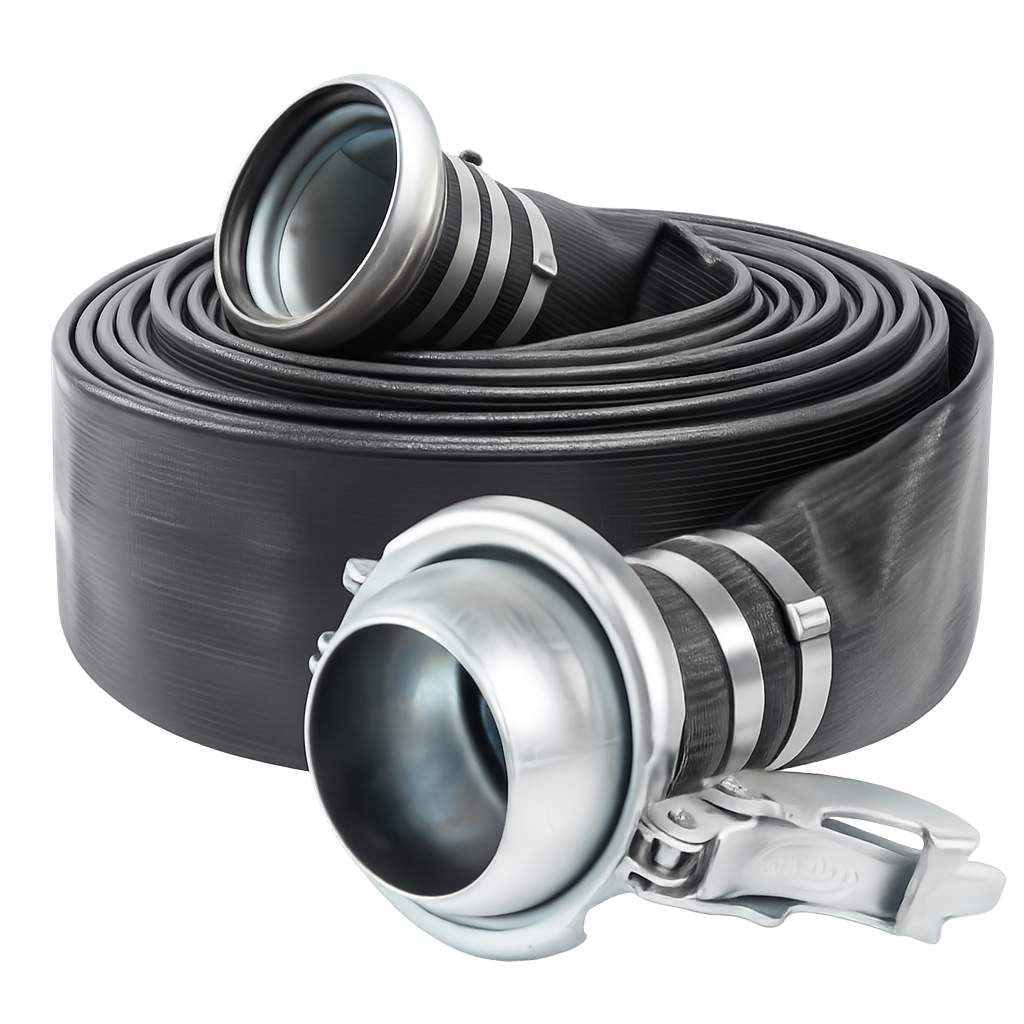

HOSHO130 Black Rubber
  • Inside Diameter3” (76mm)
  • Wall Thickness2.30mm
  • Working Pressure 175psi
  • Burst Pressure460psi
  • Tensile Strength5,300Kg
  • Nominal Weight.68kg/m
  • Bend Radius at WP1.45m

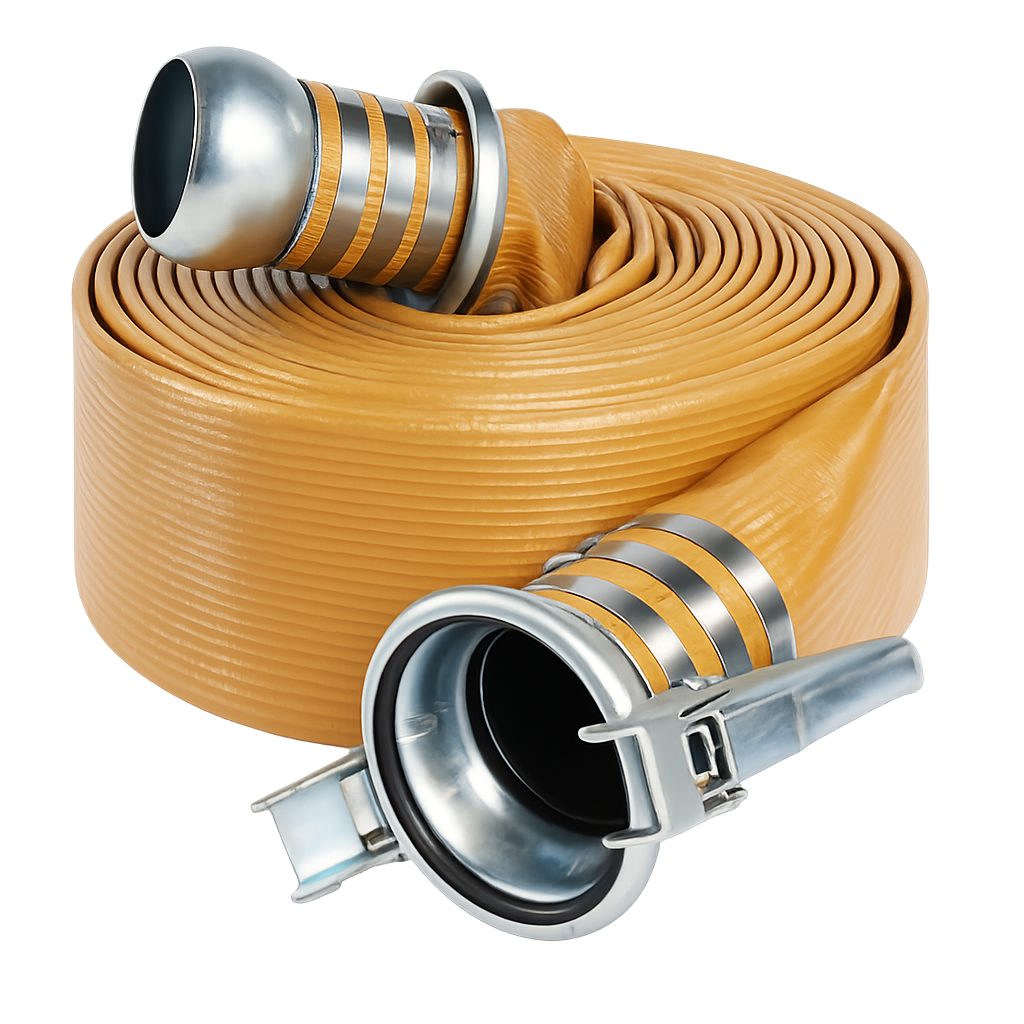

HOSHO226 Rubber
  • Inside Diameter4” (102mm)
  • Thickness3.10mm
  • Working Pressure 304psi
  • Pressure754psi
  • Strength13,000Kg
  • Nominal Weight1.25kg/m
  • Bend Radius at WP1.75m
HOSHO229 Rubber
  • Outside Diameter5” (127mm) 3.70mm
  • Wall Thickness3.20mm
  • Working Pressure304psi
  • Burst Pressure609psi
  • Tensile Strength15,500Kg
  • Nominal Weight1.70kg/m
  • Bend Radius at WP1.90m
HOSHO221 Rubber
  • Inside Diameter6” (152mm)
  • Wall Thickness4.00mm
  • Working Pressure290psi
  • Burst Pressure725psi
  • Tensile Strength23,400Kg
  • Nominal Weight2.50kg/m
  • Bend Radius at WP2.00m

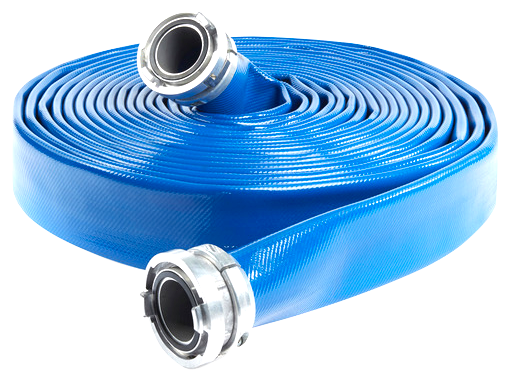

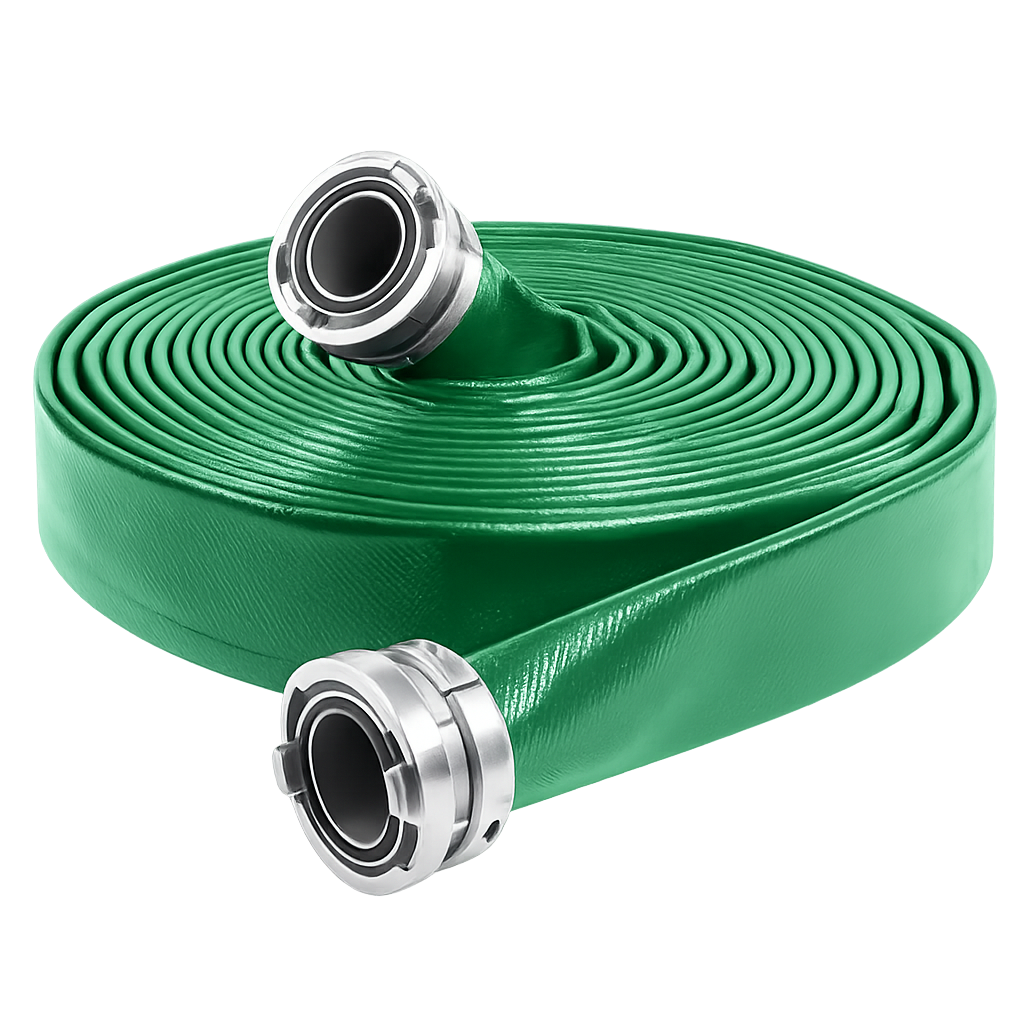

HOSHO208 PU
  • Inside Diameter4" (102mm)
  • Wall Thickness3.50mm
  • Working Pressure245psi
  • Burst Pressure609psi
  • Tensile Strength13,100kg
  • Nominal Weight1.30kg/m
  • Bend Radius at WP1.75m
HOSHO199 PU
  • Inside Diameter5" (127mm)
  • Wall Thickness3.70mm
  • Working Pressure203psi
  • Burst Pressure507psi
  • Tensile Strength18,000kg
  • Nominal Weight1.70kg/m
  • Bend Radius at WP1.90m
HOSHO223 PU
  • Inside Diameter6" (152mm)
  • Wall Thickness3.80mm
  • Working Pressure175psi
  • Burst Pressure435psi
  • Tensile Strength25,000kg
  • Nominal Weight2.05kg/m
  • Bend Radius at WP2.00m

We’re Here For You

Nevada slurry tankers & stirrers are high-quality and trusted by New Zealand farmers for safety and reliability. That is why they are supported with a two year warranty, and backed by customer service that is second to none.
