Progressive Cavity Pumps

Nevada’s heavy-duty progressive cavity (PC) pump kits are built to handle dairy effluent irrigation and proven as the best on the market. With high pumping efficiency and reduced operating costs, you’ll be saving time and money in no time.

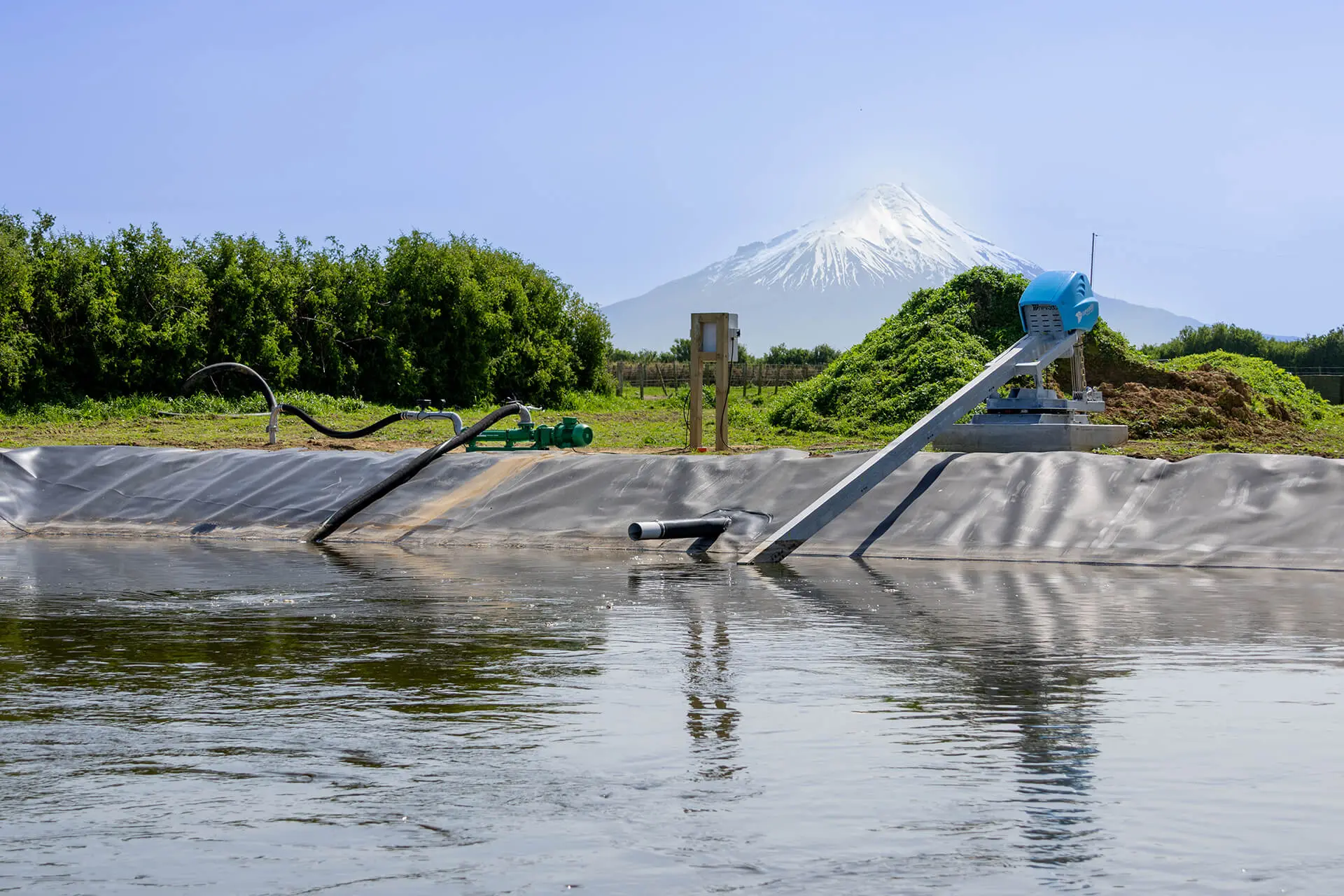

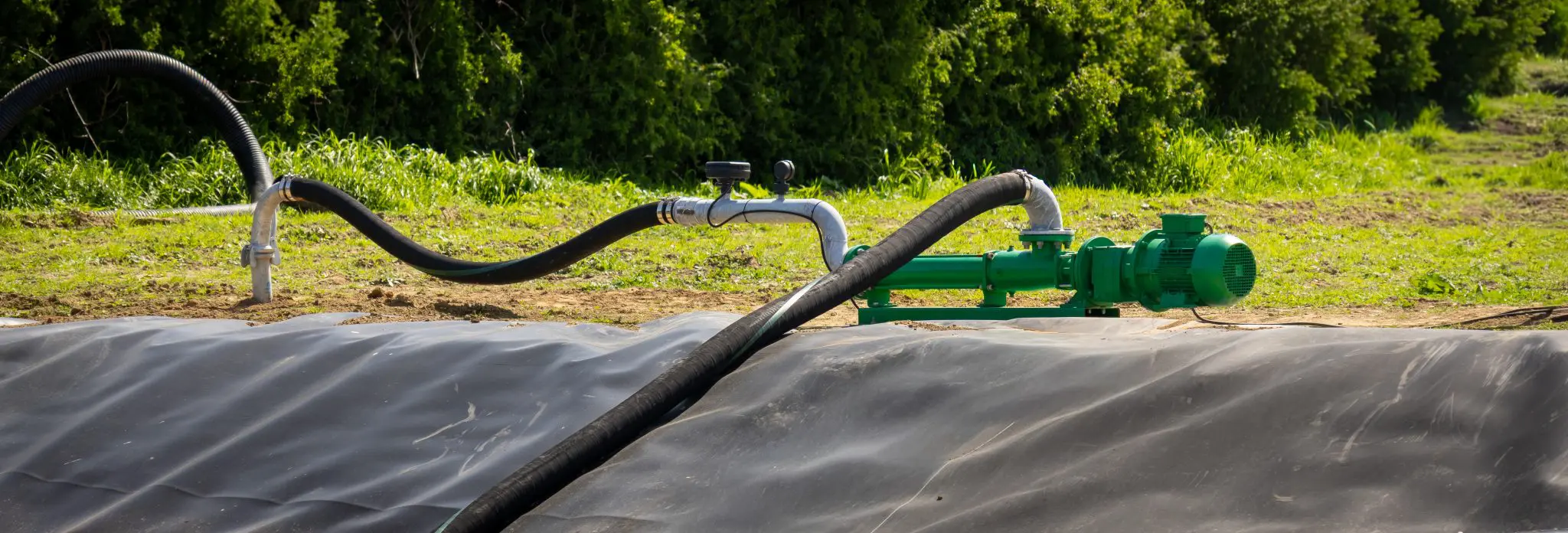

Nevada Hero Progress Cavity Effluent pump on side of pond with Electric Stirrer and Taranaki Maunga in background

Progressive Cavity Pumps

Nevada’s heavy-duty progressive cavity (PC) pump kits are built to handle dairy effluent irrigation and proven as the best on the market. With high pumping efficiency and reduced operating costs, you’ll be saving time and money in no time.
PROGRESS CAVITY PUMPS

Better Pumps, Smarter Choice

Progressive cavity effluent pumps have a lot of advantages over floating pumps. For a start, they are a lot more efficient. They are at the side of the pond, so access is much simpler and safer, which means servicing is easier. You also use less power to get the same output, which, over the year, is money in your pocket. On top of that, the pump gives you a constant volume.

There are no surprises; it doesn’t matter how far the effluent has to travel, you have a uniform flow.

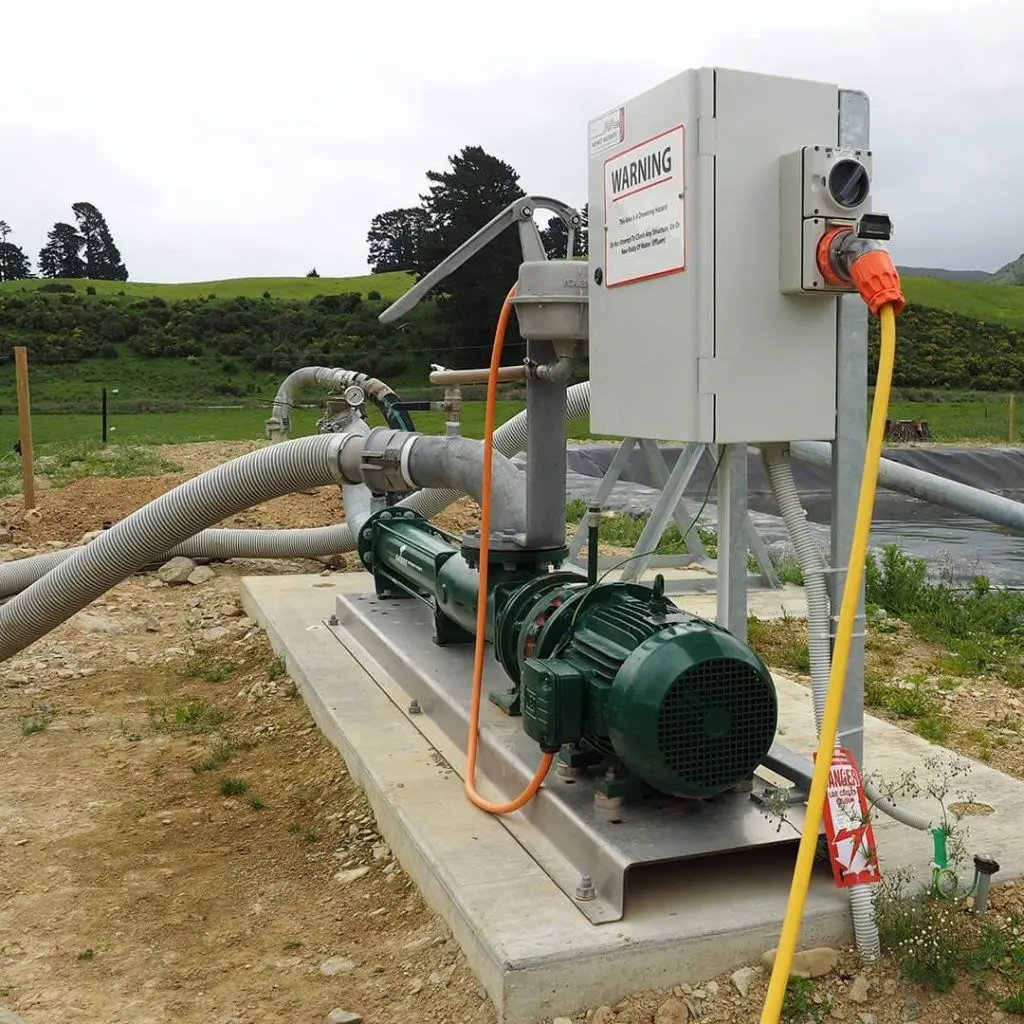

Complete and ready to install, each unit includes:
– Galvanised head works

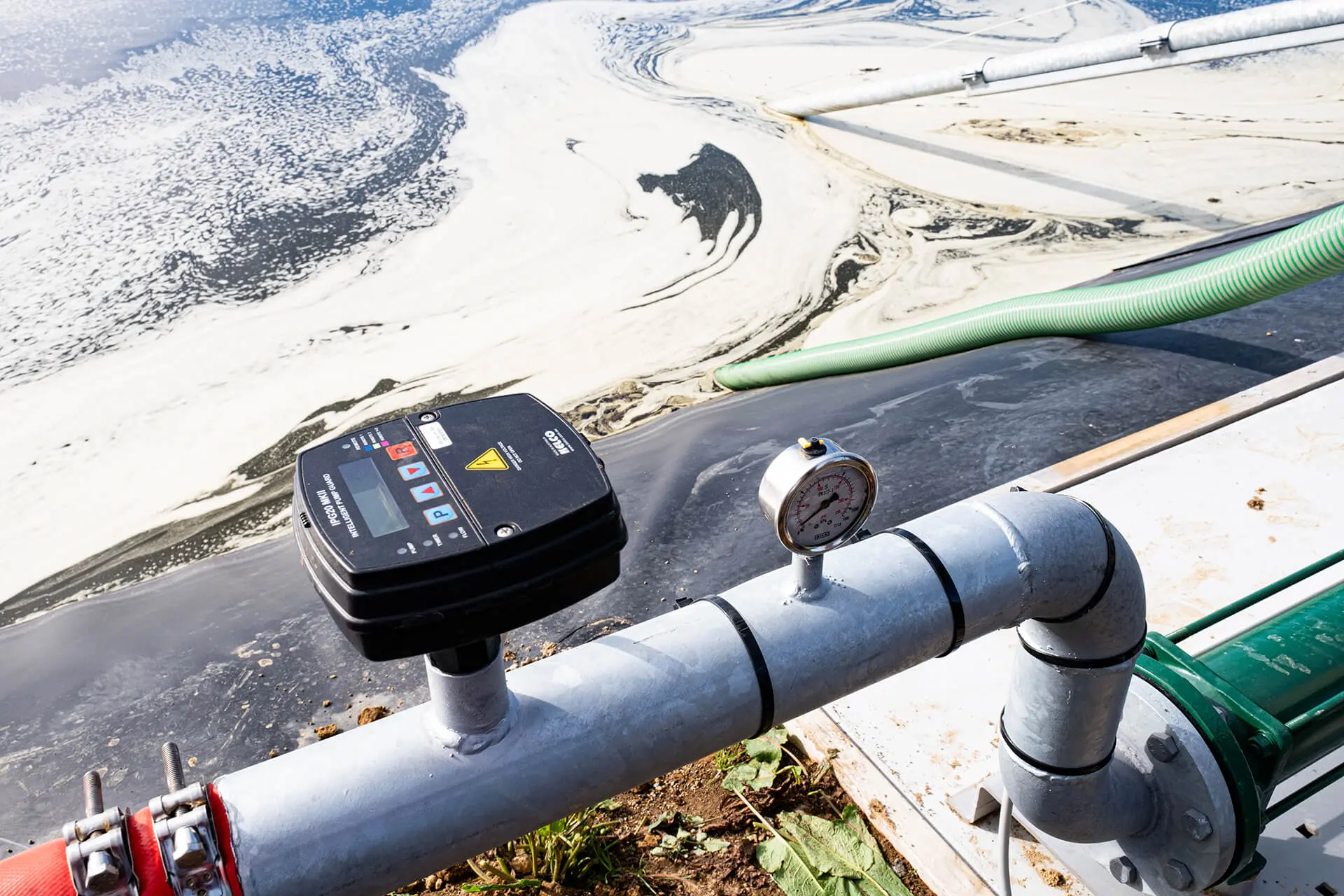

– Intelligent controller unit
– Suction hose and base mount ready to be mounted to concrete
– Outlet pipe connection

Features

  • Model options ranging from 3 to 15kW (4 to 20HP)
  • Duty capacity up to 10L/sec and maximum pressure of 11 bar (160 psi)

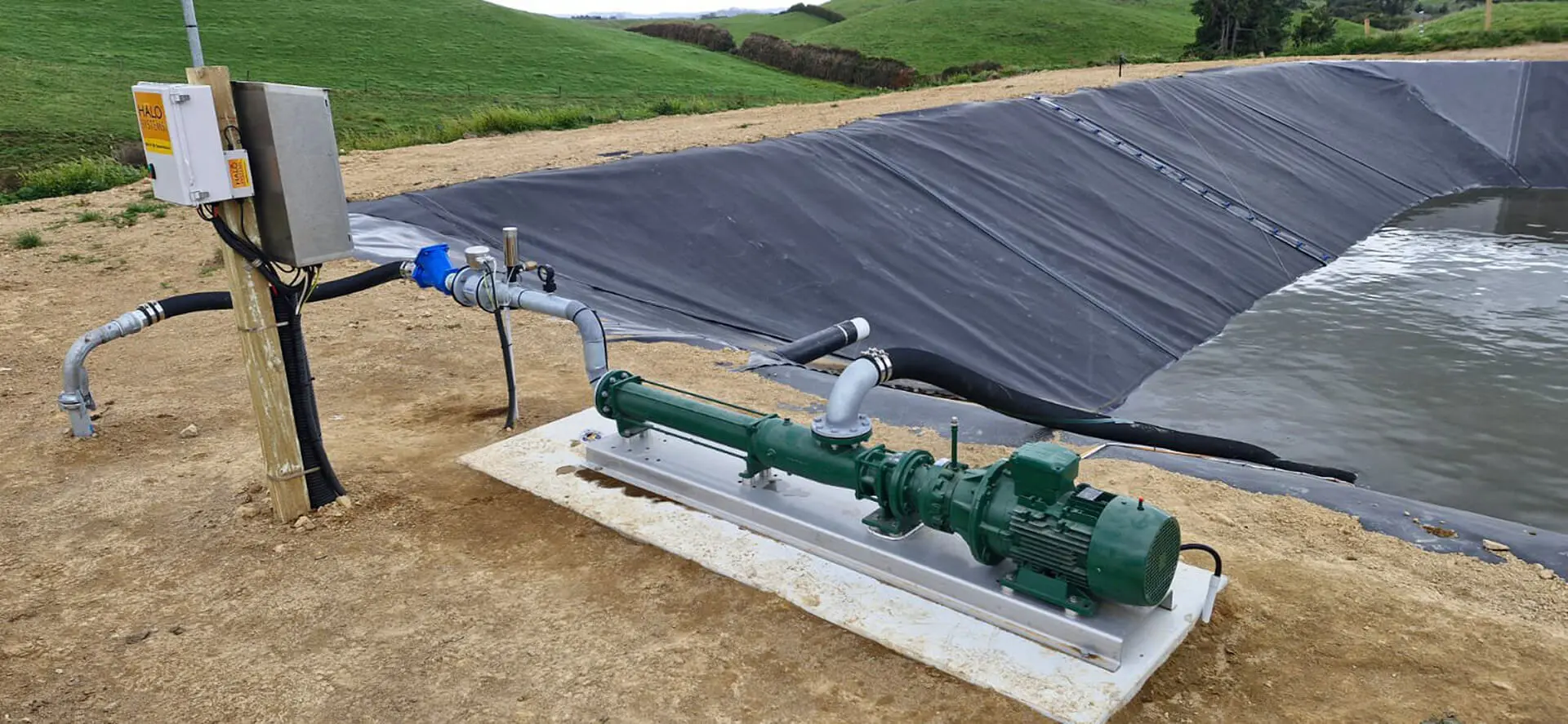

  • Suitable for shore-mounting applications with end-suction lift up to 6m
  • Ideal for screened or settled effluent with soft solids

Gallery

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Technical Specs

1860
  • Flow18m3/h
  • Pressure60H(m)
  • Power Requirements5.5kW
  • Flange Size80mm
  • Solids (Hard/Soft)9.6/38mm
1890
  • Flow18m3/h
  • Pressure90H(m)
  • Requirements7.5kW
  • Flange Size100mm
  • Solids (Hard/Soft)12/48mm
2690
  • Flow26m3/h
  • Pressure90H(m)
  • Requirements11kW
  • Flange Size100mm
  • Solids (Hard/Soft)12/48mm
3690
  • Flow36m3/h
  • Pressure90H(m)
  • Requirements15kW
  • Flange Size125mm
  • Solids (Hard/Soft)15/60mm
29100
  • Flow29m3/h
  • Pressure100H(m)
  • Requirements15kW
  • Flange Size125mm
  • Solids (Hard/Soft)15/60mm

We’re Here For You

Nevada slurry tankers & stirrers are high-quality and trusted by New Zealand farmers for safety and reliability. That is why they are supported with a two year warranty, and backed by customer service that is second to none.
