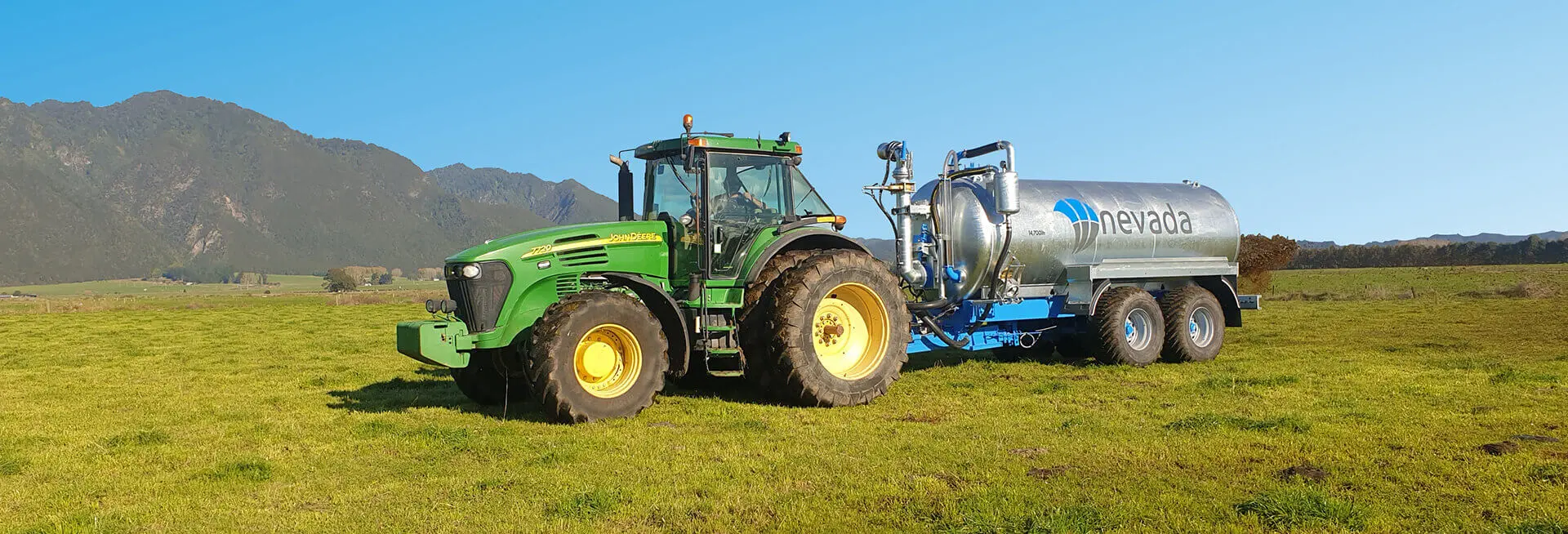

Tandem Axle Slurry Tanker

Nevada Tandem Axle Slurry Tankers are perfect if medium sized farms, they perform better over rolling country, giving you a smoother ride than a single axle.

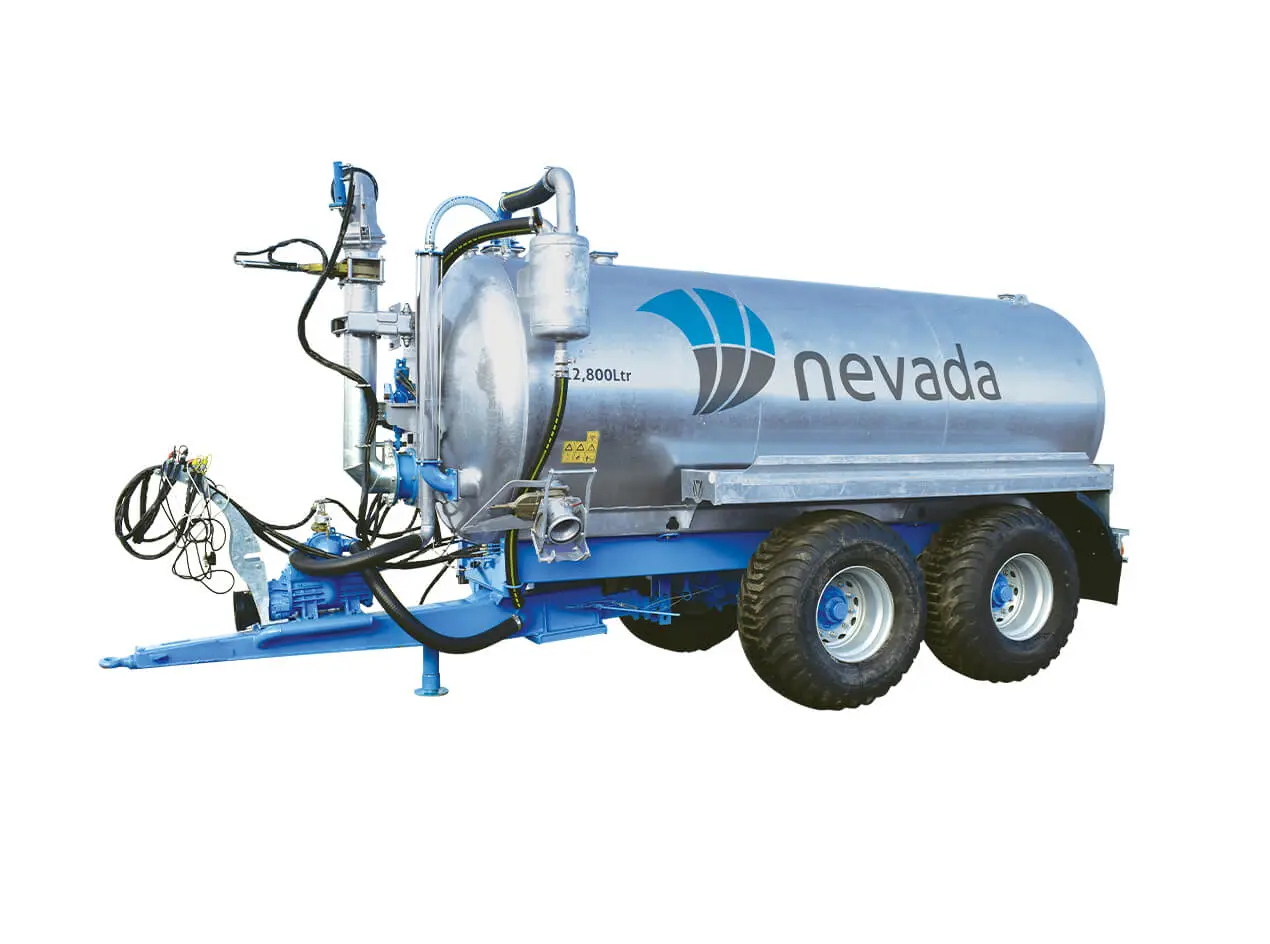

Nevada Tandem Axle Slurry Tanker

Tandem Axle Slurry Tanker

Nevada Tandem Axle Slurry Tankers are perfect if medium sized farms, they perform better over rolling country, giving you a smoother ride than a single axle.

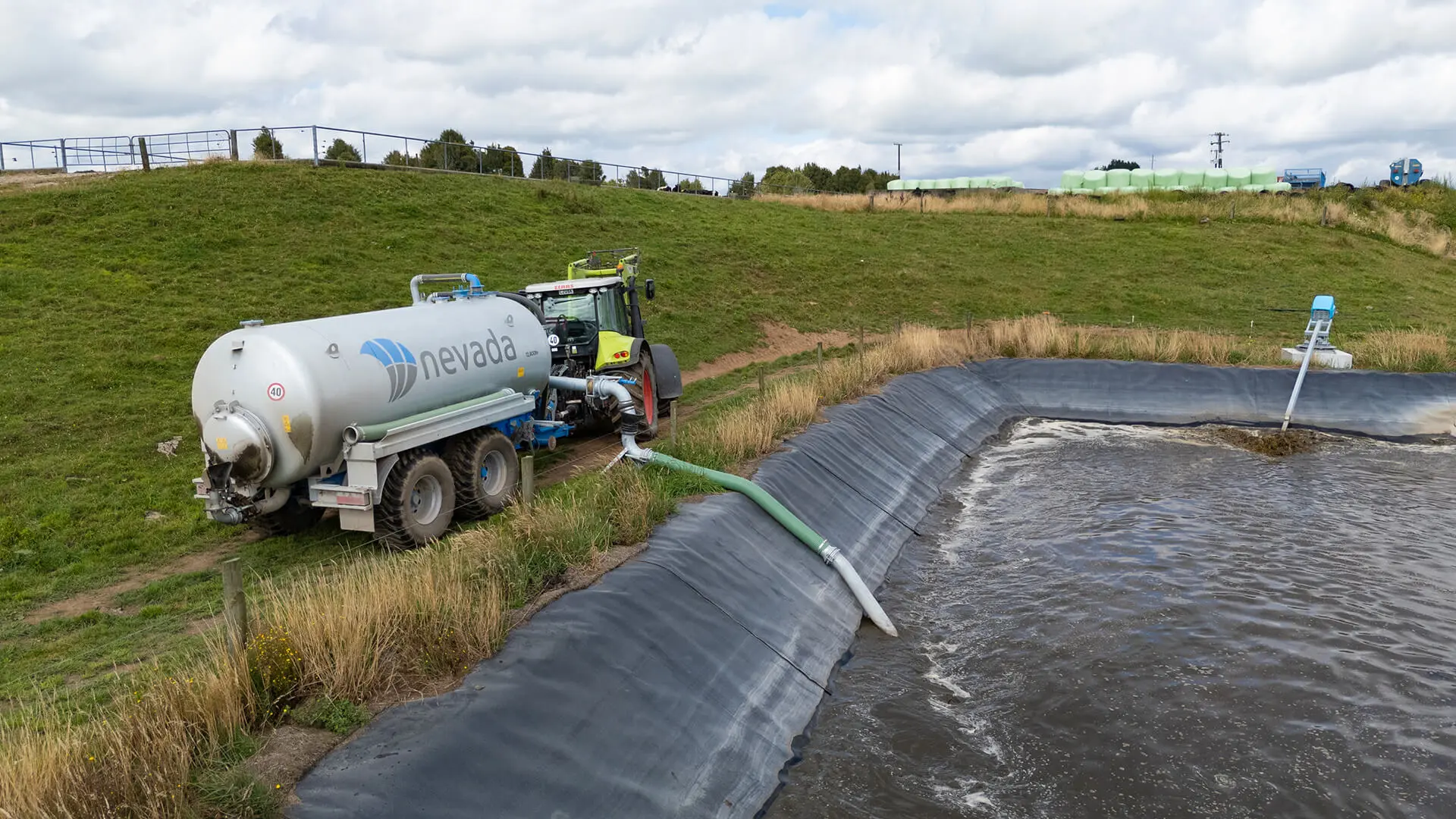

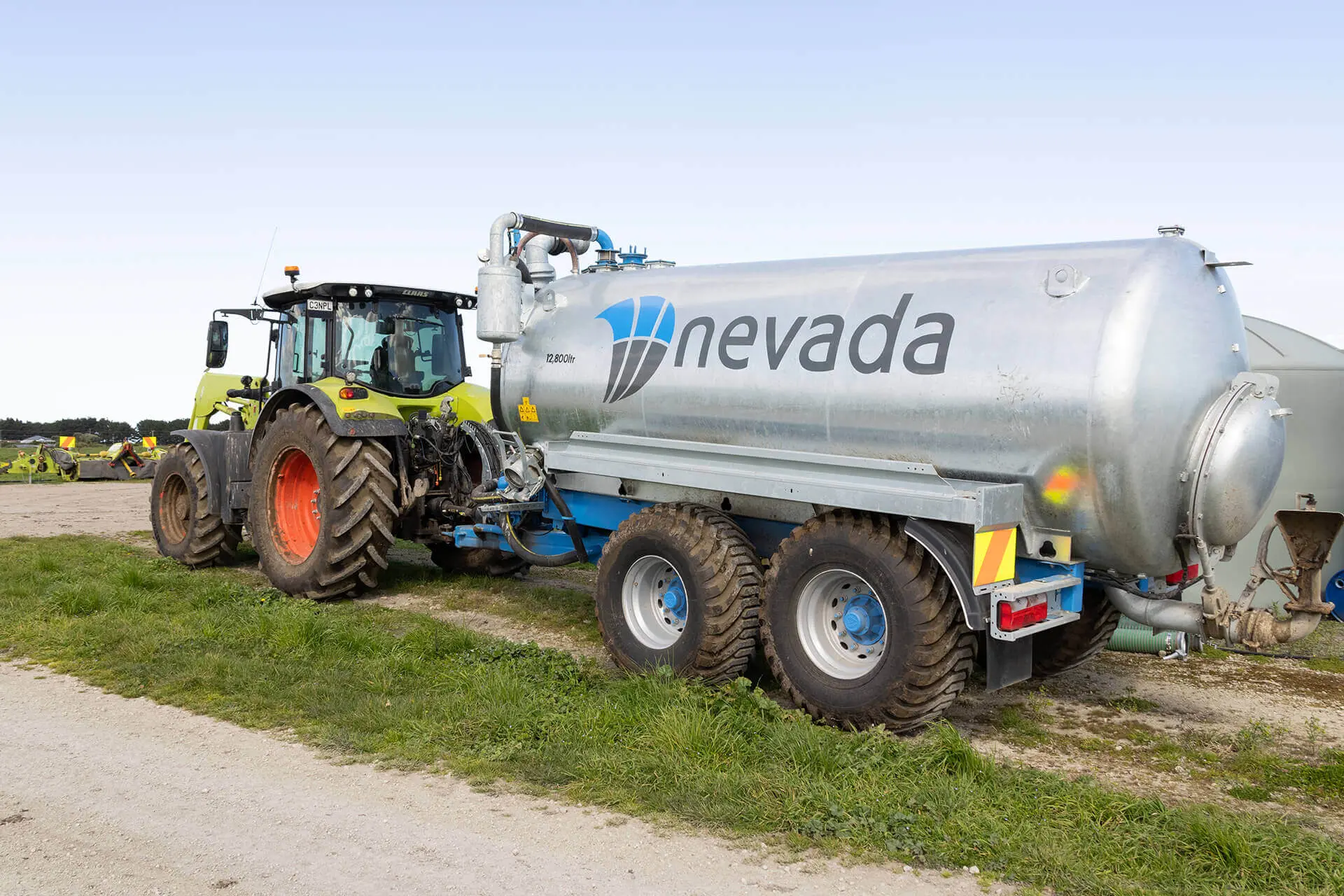

Nevada 12800L Tandem Slurry Tanker filling with the 8in auto fill arm
Tandem Axle Slurry Tanker

Got a larger farm with medium to large storage?

And a tractor around 100-200hp? Then a Nevada Tandem Axle Slurry Tanker is the one for you!

Tandem axle slurry tankers will perform better over rolling country than a single axle. With more wheels there is less ground pressure, so you’re less likely to get stuck in the paddock or mess the grass. Plus with the ability to cart loads of 10,000 litres and more, you’ll be getting the job done a lot job quicker!

Price range: $99,500 - $139,500 excl GST

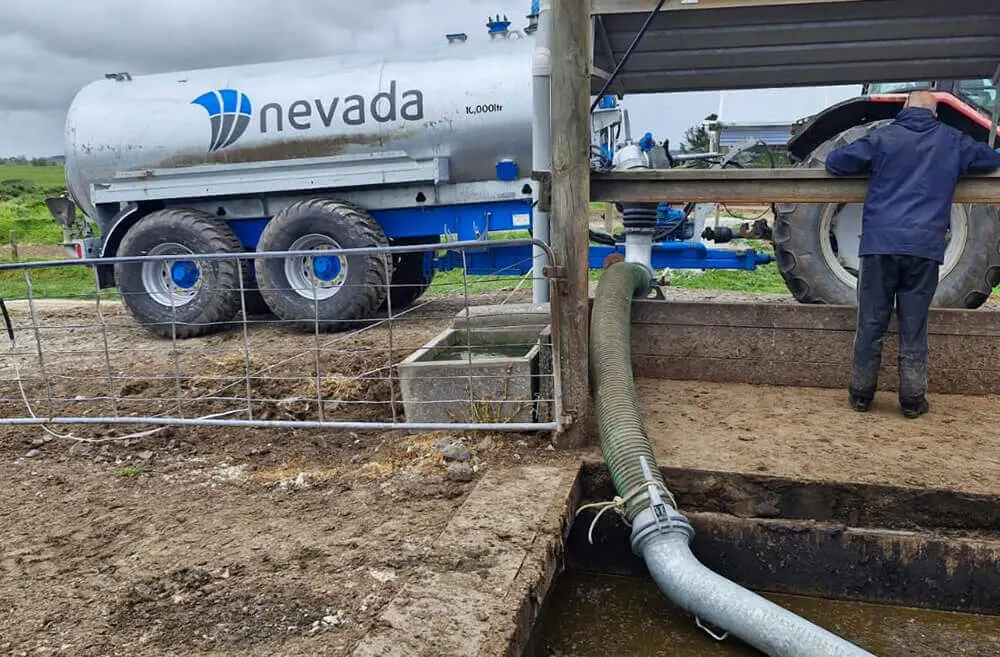

8 inch Auto-Filling Arm

Standard on 10,000L and larger tankers, filling up your tandem axle slurry tanker is a breeze with the addition of the Nevada Ezi-load system.

You may be asking “Do I need auto-fill on my slurry tanker?” If you’re keen on saving time and making the job easier, then absolutely. The auto-fill arm takes the hassle out of loading—no more dragging hoses or getting in and out of the cab just to connect up. It lets you stay in control from the seat, filling straight from the pond with minimal effort. On a busy Kiwi farm, that means less downtime and more efficient spreading. So while it’s not a must-have, once you’ve used one, you’ll wonder how you ever managed without it.

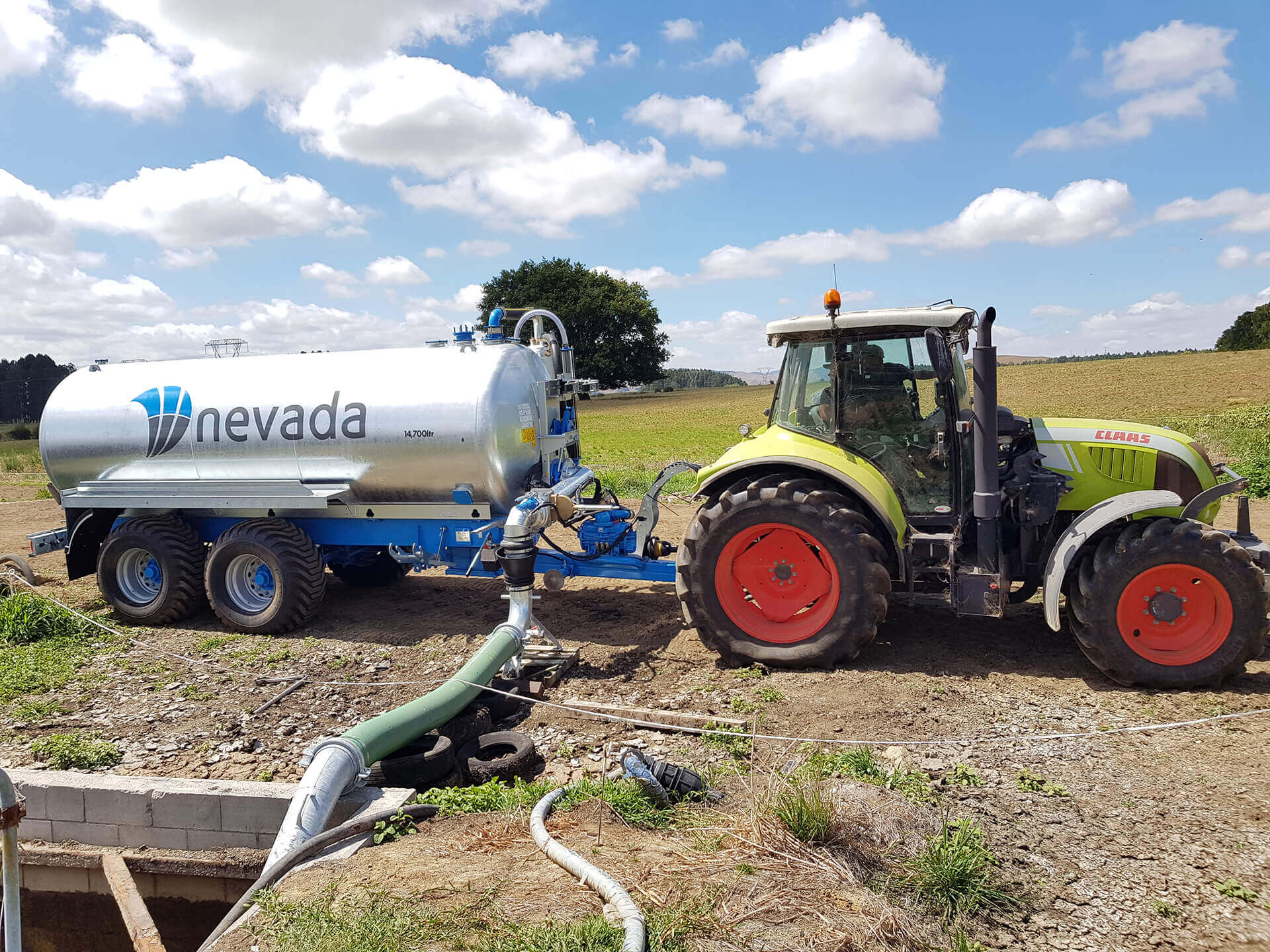

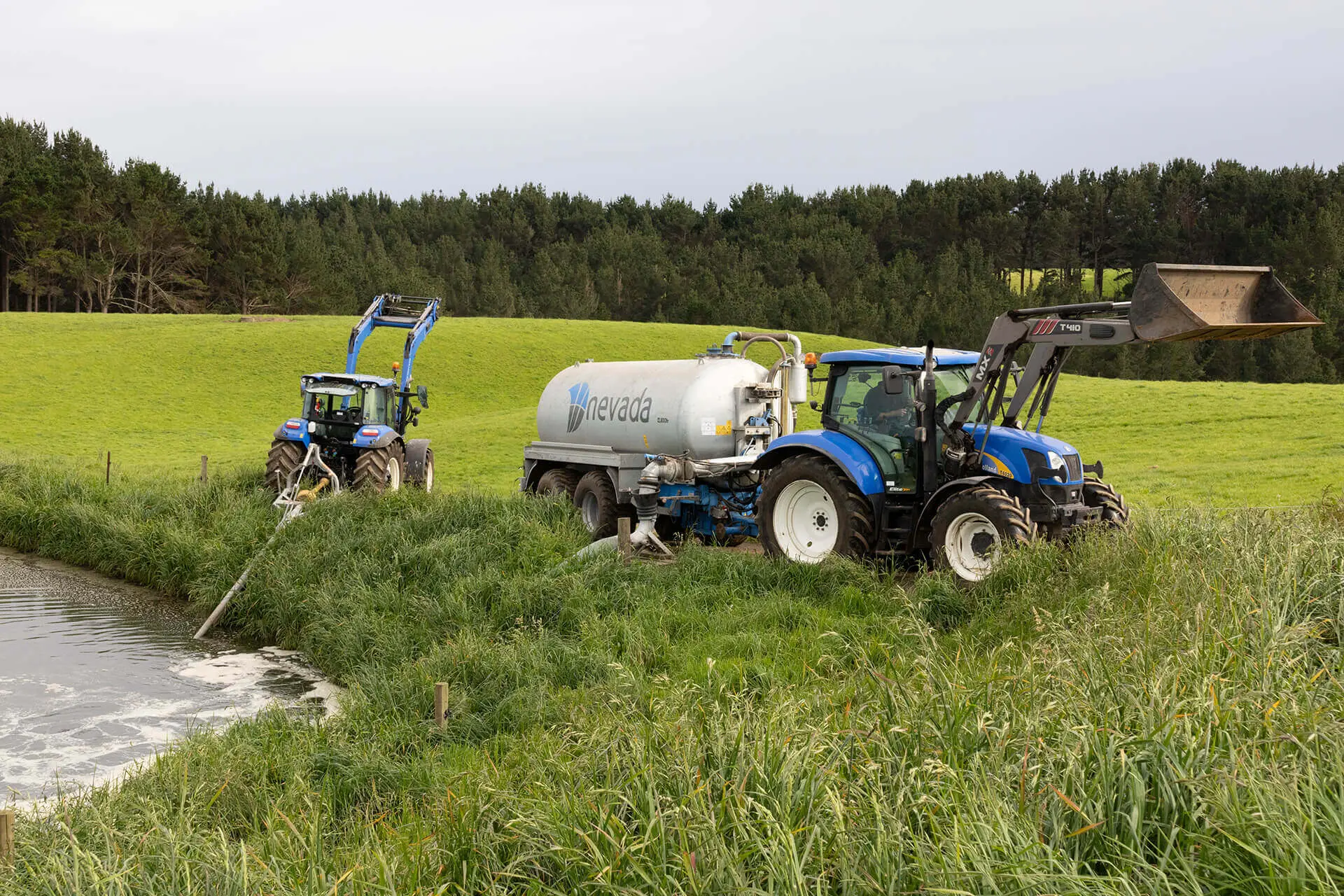

Nevada Slurry Tanker loading effluent via the 8 inch auto-fill arm
Nevada Slurry Tanker with Battioni Heavy Duty Vacuum Pump

Tandem Axle Vacuum Pumps

All Nevada Slurry Tankers come standard with heavy-duty Italian Battioni vacuum pumps, built to handle the demands of dairy farming. These PTO-driven pumps are well-suited for thick slurries and offer reliable performance across a wide range of applications.

Tandem axle tankers are fitted with Battioni pumps that have long-life vanes, air injection, and Integrated Crash Protection (ICP) to safeguard internal components. With a reinforced build and enhanced features, these pumps are engineered for an extended 70% duty cycle—ideal for the increased workload and capacity of larger slurry tankers.

Tandem Axle Assembley

Parabolic Leaf Spring Suspension

Nevada Slurry Tankers are built with a drawbar featuring multi-leaf spring suspension to absorb shock loading, helping protect both the tractor and driver from stress and fatigue. Tandem axle models also include parabolic leaf springs on the axles, chosen for their superior stability and reliability. This setup delivers a smoother ride, allows for faster travel, and helps reduce track damage across the farm.

Hydraulic Braking on Every Wheel

All Nevada slurry tankers include large hydraulic braking on every wheel to ensure a safe and reliable operation, as well as a manual park brake.

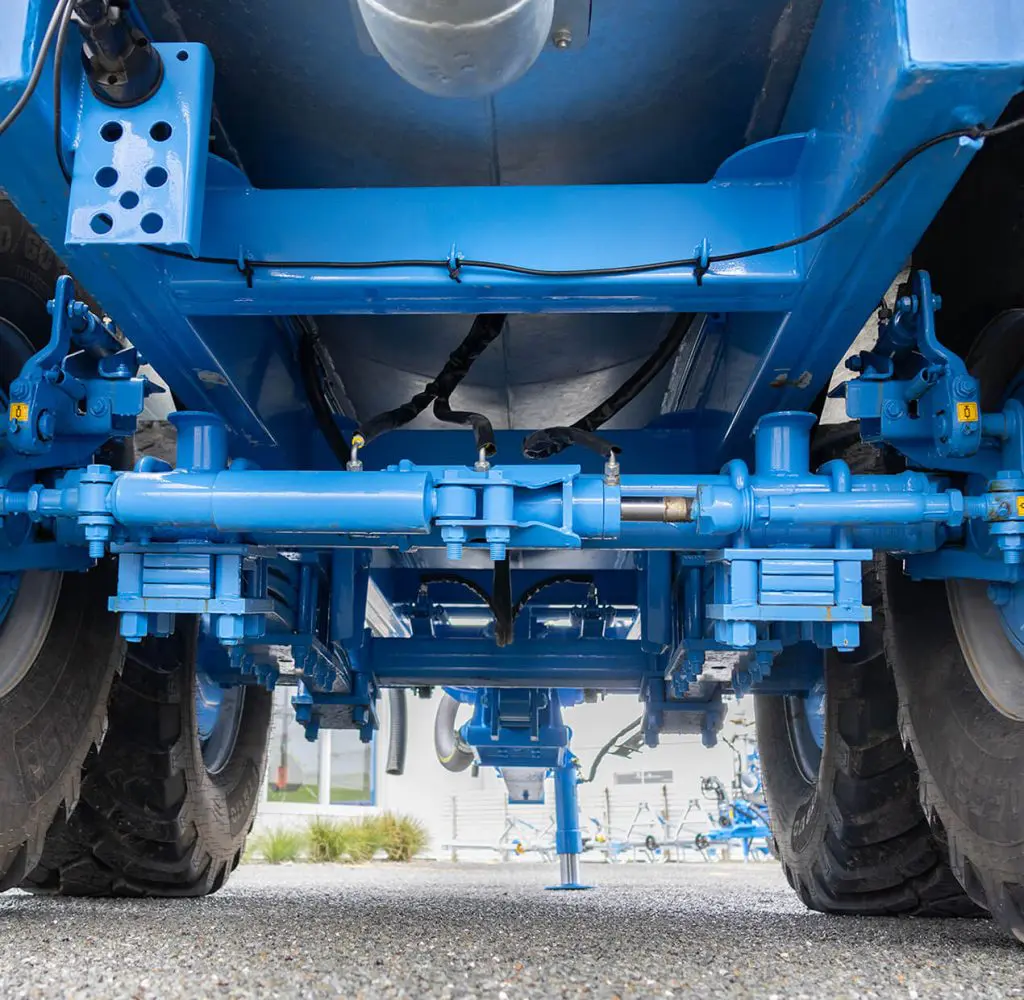

Floating Self Steering

Nevada tankers are built with caster steering and hydraulic lockout, providing easy turning for the majority of farming situations.

Nevada Slurry Tankers are built with a drawbar incorporating multi-leaf spring suspension to absorb shock loading
Nevada Slurry Tanker with hydraulically driven steering

Alternative Options

Hydraulic & Pneumatic Suspension

Hydraulic and pneumatic suspension is available on request for tandem and triple axle models.

Forced Steering

Contractors doing a lot of work moving around tight corners, or having to back up around tight corners opt for forced steering, where steering is hydraulically driven from the tractor.

Gallery

Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

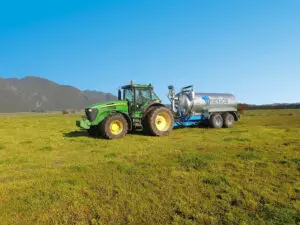

Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9

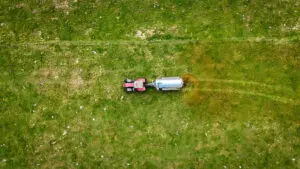

Thumbnail 10
Thumbnail 11
Thumbnail 12

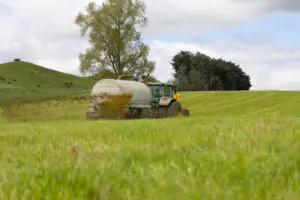

Thumbnail 13
Thumbnail 14
Thumbnail 15
Thumbnail 16

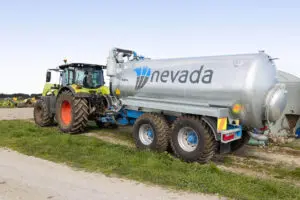

Thumbnail 17
Thumbnail 18
Thumbnail 19

Technical Specs

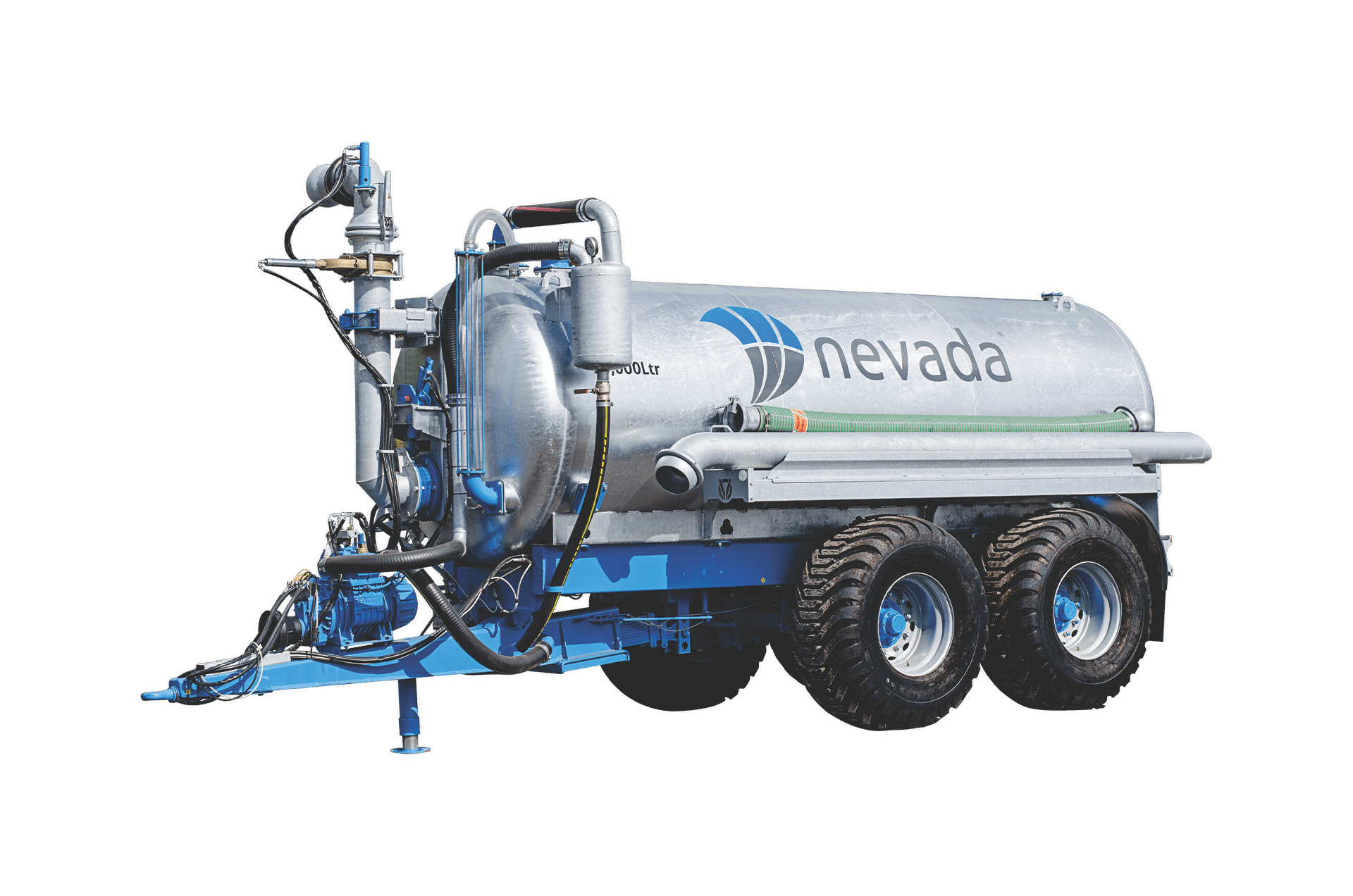

MB100-4R Tandem Axle
  • Tank Size10,000L
  • Length7.2m
  • Width2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump FlowPump L/Min13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount

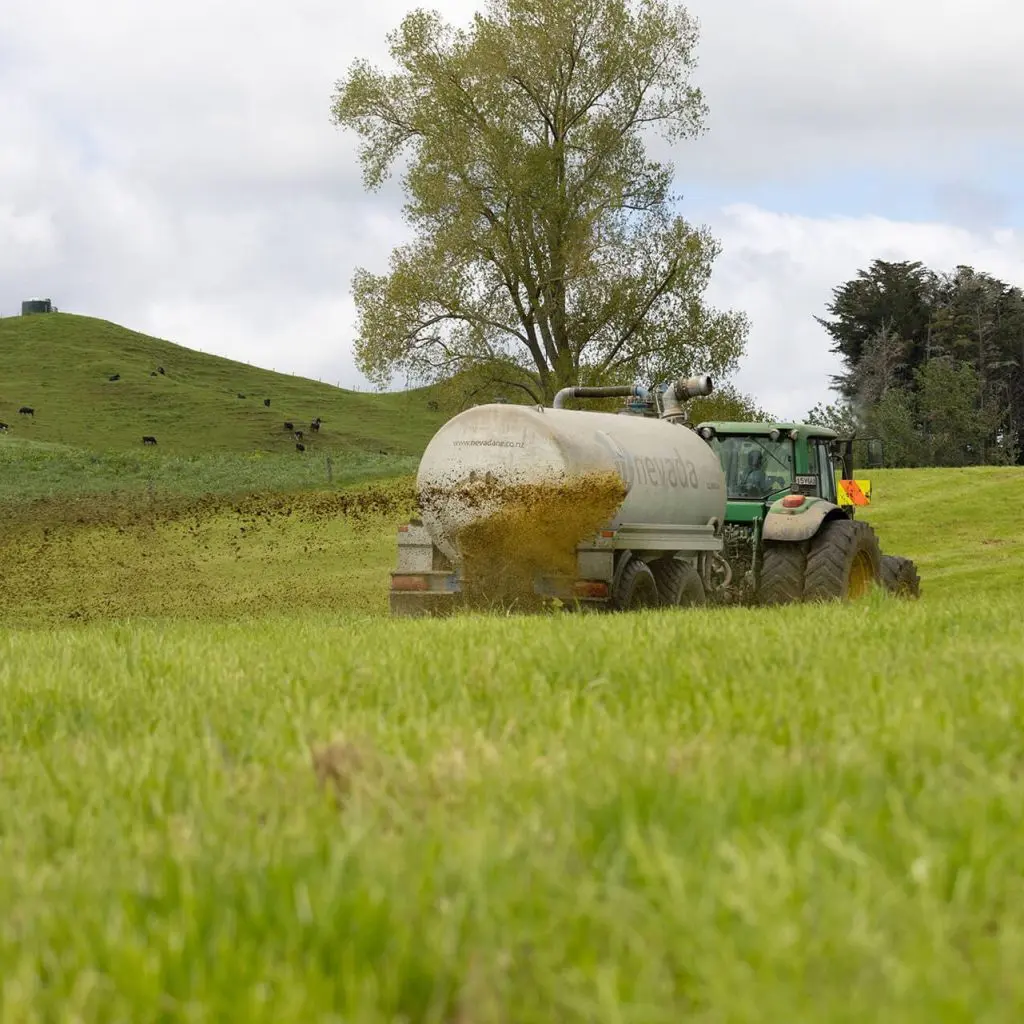

  • Applicator TypeRainWave™
  • Min Tractor Requirements100hp
  • Tare Weight5,000kg
MB120-4R Tandem Axle
  • Tank Size12,800L
  • Length7.6m
  • Weight2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump Flow13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements120hp
  • Tare Weight5,300kg

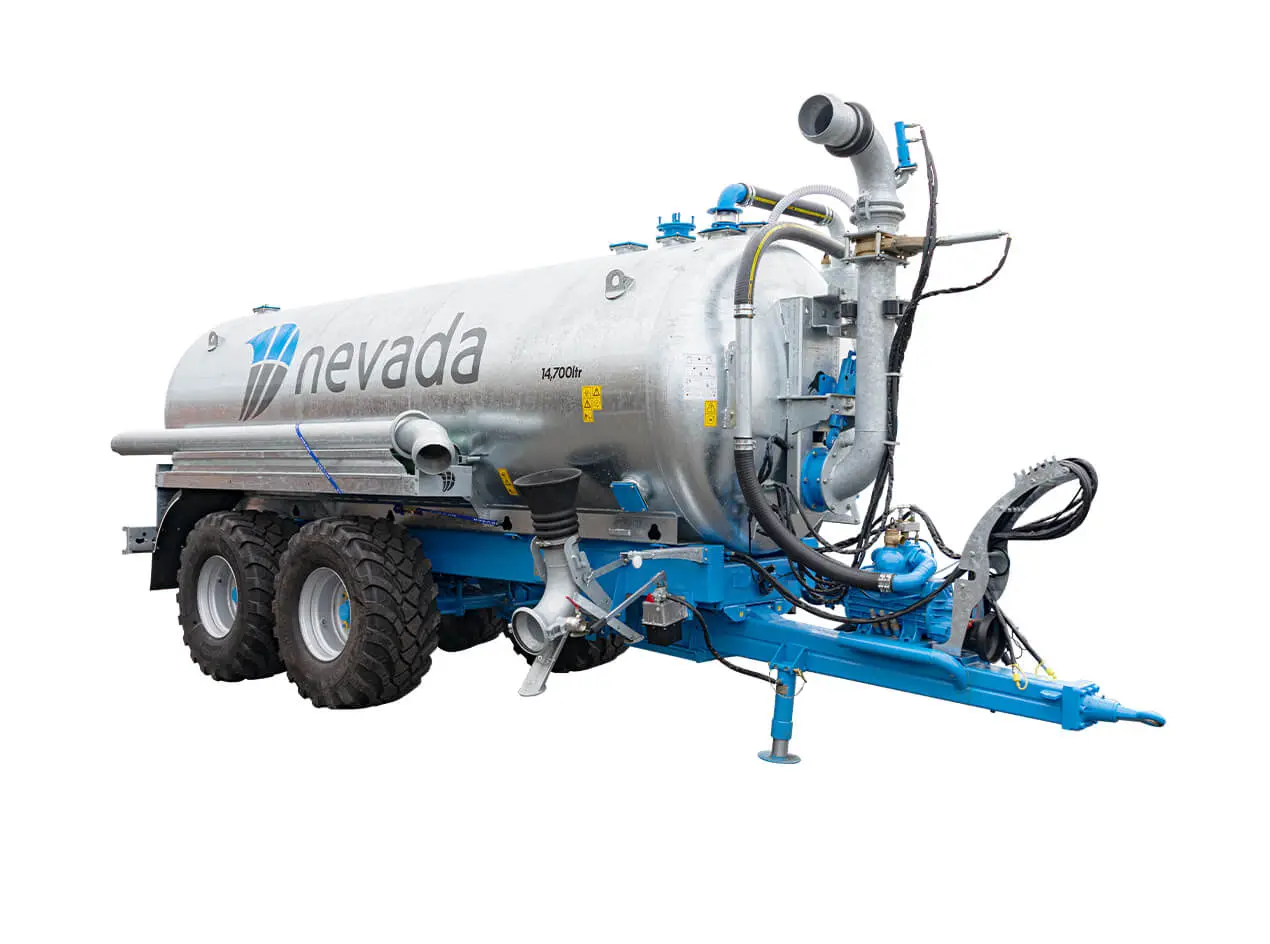

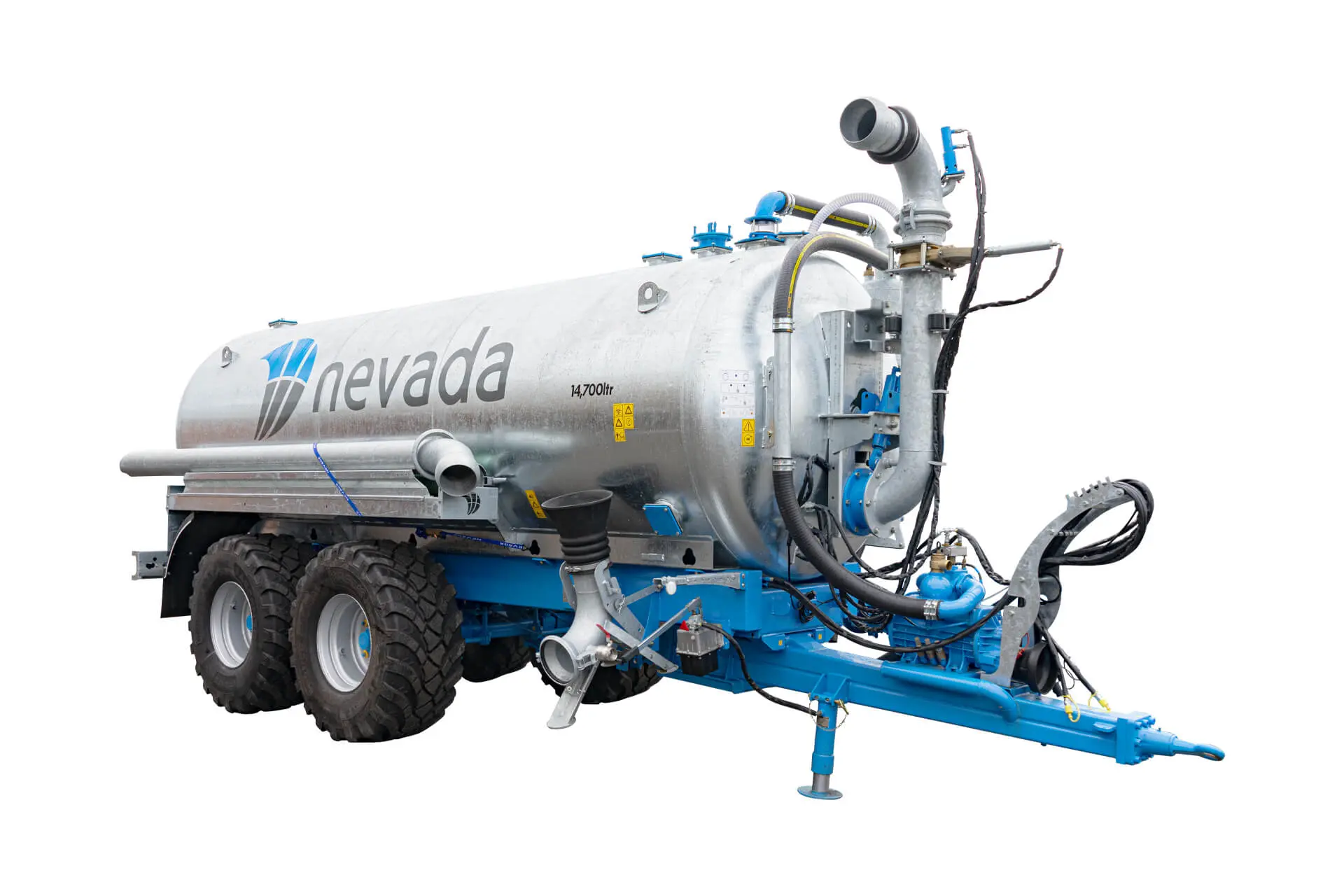

MB140-4R Tandem Axle
  • Tank Size14,700L
  • Length7.9m
  • Weight2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump Flow13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements140hp
  • Tare Weight6,000kg

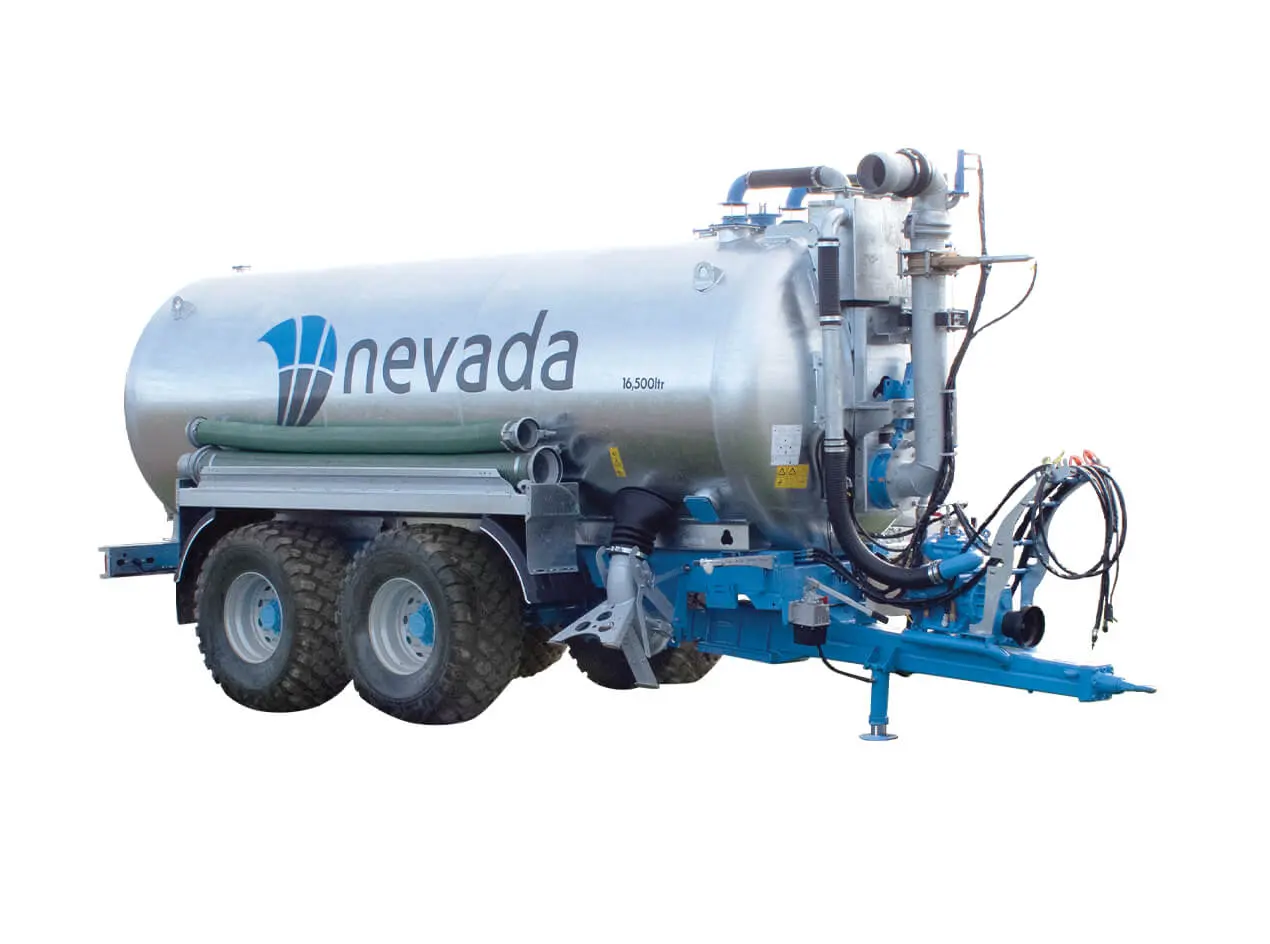

MB160-4R Tandem Axle
  • Tank Size16,500L
  • Length8.4m
  • Width2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 16500MA Air Injected
  • Vacuum Pump Flow16,800L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements160hp
  • Tare Weight6,800kg

We’re Here For You

Nevada slurry tankers & stirrers are high-quality and trusted by New Zealand farmers for safety and reliability. That is why they are supported with a two year warranty, and backed by customer service that is second to none.

Related Videos

Discover engaging videos and media showcasing our equipment, success stories, and best practices in dairy effluent management.

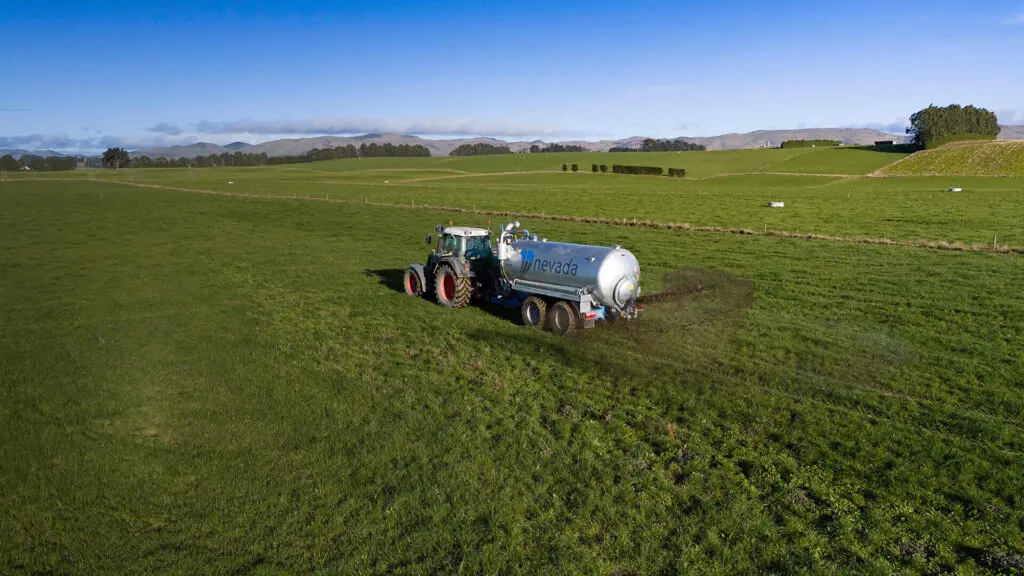

On-Farm with Ben and Mackenzie in Gore
